Product Introduction>>

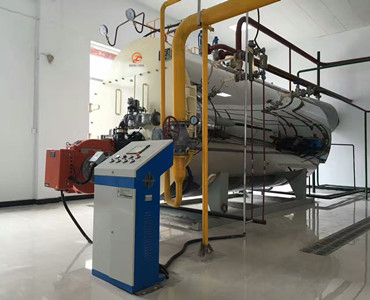

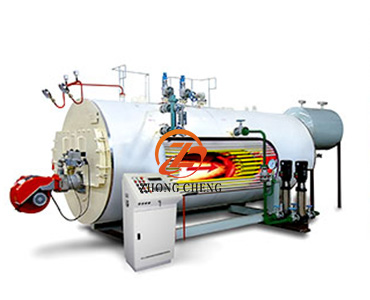

The WNS horizontal fuel gas pressurized hot water boiler is a fully automatic fuel gas horizontal internal combustion three return fire tube boiler, which adopts a low position and symmetrical arrangement of combustion chambers. All pipes on the body are connected to the drum and tube plate by welding. The front smoke box adopts a quick opening structure, and the rear of the tempering chamber is equipped with an explosion-proof door that integrates explosion-proof and inspection. The lower part of the drum is equipped with two head holes and a cleaning hole for easy inspection, maintenance, and cleaning.

The WNS horizontal fuel gas pressurized hot water boiler adopts a lower corrugated furnace chamber. The high-temperature flue gas is sequentially flushed through the second and third return flue pipes in the tempering chamber of the corrugated furnace chamber, and then discharged into the atmosphere through the chimney in the rear flue chamber. The total heating area of the boiler is sufficient to fully absorb effective heat, with low exhaust gas temperature and low heat loss, ensuring sufficient output and high efficiency. The diameter of the pot shell is large, the water capacity is large, the adaptability to load changes is strong, and the output is stable

This boiler is widely used for enterprises, hotels, hospitals, office buildings, swimming pools, springs, residences, hotels, bath centers, schools, shopping malls, civil buildings and other facilities in high-altitude cold regions, as well as for domestic water and heating
